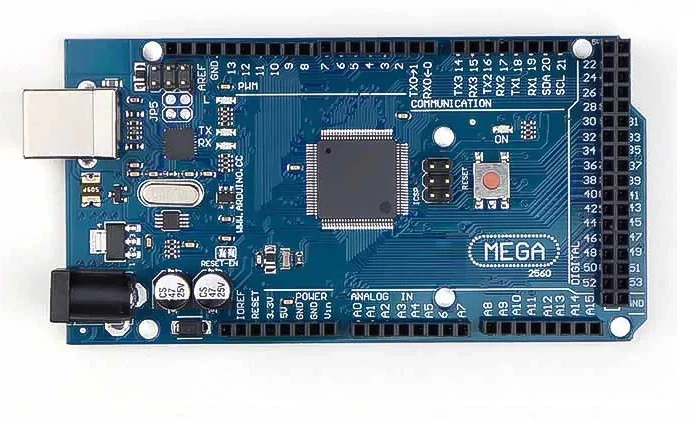

Arduino MEGA 2560 – original (with out cable )

Arduino MEGA 2560 – original (with out cable ) is a high-quality electronic component designed for Arduino, prototyping, and educational electronics. The Arduino Mega 2560, the successor to the Arduino Mega, is a microcontroller board based on a ATmega2560 AVR microcontroller. It has 70 digital input/output pins (of which 15 can be used as PWM outputs and 16 can be used as analog inputs), a 16 MHz resonator, a USB connection, a power jack, an in-circuit system programming (ICSP) header, and a reset button. It contains everything needed to support the microcontroller; simply connect it to a computer with a USB cable or power it with a AC-to-DC adapter or battery to get started.

The Mega 2560 differs from the preceding Mega in that it does not use the FTDI USB-to-serial driver chip. Instead, it features the Atmega8U2 programmed as a USB-to-serial converter. This auxiliary microcontroller has its own USB bootloader, which allows advanced users to reprogram it.

The Arduino Mega revision R3 adds SDA and SCL pins next to the AREF. In addition, there are two new pins placed near the RESET pin. One is the IOREF that is meant to allow shields to adapt to the voltage provided from the board. The other is a not connected and is reserved for future purposes. The Mega 2560 R3 works with all existing shields but can work with new shields that use these additional pins.
Summary

Microcontroller: ATmega2560
Operating voltage: 5 V
Input voltage (recommended): 7-12 V
Digital I/O pins: 70 (of which 15 provide PWM output)
Analog input pins: 16*
DC current per I/O pin: 40 mA
DC current for 3.3V pin: 50 mA
Flash memory: 256 KB of which 8 KB used by bootloader
SRAM: 8 KB
EEPROM: 4 KB
Clock speed: 16 MHz
Dimensions: 101.52 mm x 53.3 mm (Length x Width)

The Pinout of Arduino Mega is shown below:


It’s perfect for DIY makers, students, and anyone building custom electronic circuits or STEM kits.
