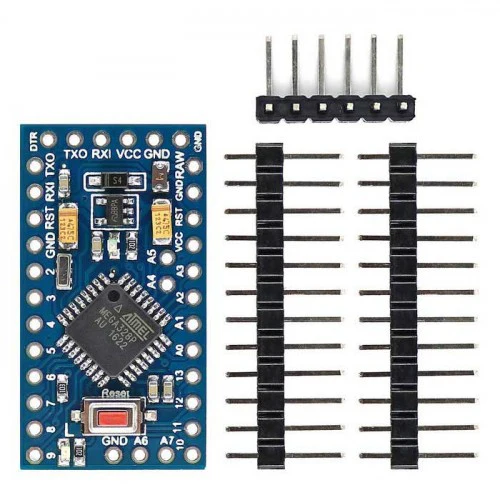

Arduino Pro Mini ATMEGA328P 5V 16MHz

Arduino Pro Mini ATMEGA328P 5V 16MHz is a high-quality electronic component designed for Arduino, prototyping, and educational electronics. The Arduino Pro Mini is an ATmega328p based microcontroller board. The board comes with built-in Arduino bootloader. It has 14 digital input/output pins (of which 6 can be used as PWM outputs), 8 Analog inputs, an on-board resonator, a reset button, and holes for mounting pin headers. The board can be connected to the PC using USB port and the board can runs on USB power.

Arduino Pro Mini DETAILS

Microcontroller
ATmega328p

Operating Voltage
3.3V or 5V

Input Voltage
5 – 12 V (5V model)

Digital I/O Pins
14 (of which 6 provide PWM output)

Analog Input Pins
8

Forward Current per Pin
40 mA

Flash Memory
16 KB (of which 2 KB used by bootloader)

SRAM
2 KB

EEPROM
1 KB

Clock Speed
16 MHz (5V model)

Dimensions
33*18mm (L*W)

Communication: TWI/I2C, UART, SPI

It’s perfect for DIY makers, students, and anyone building custom electronic circuits or STEM kits.
