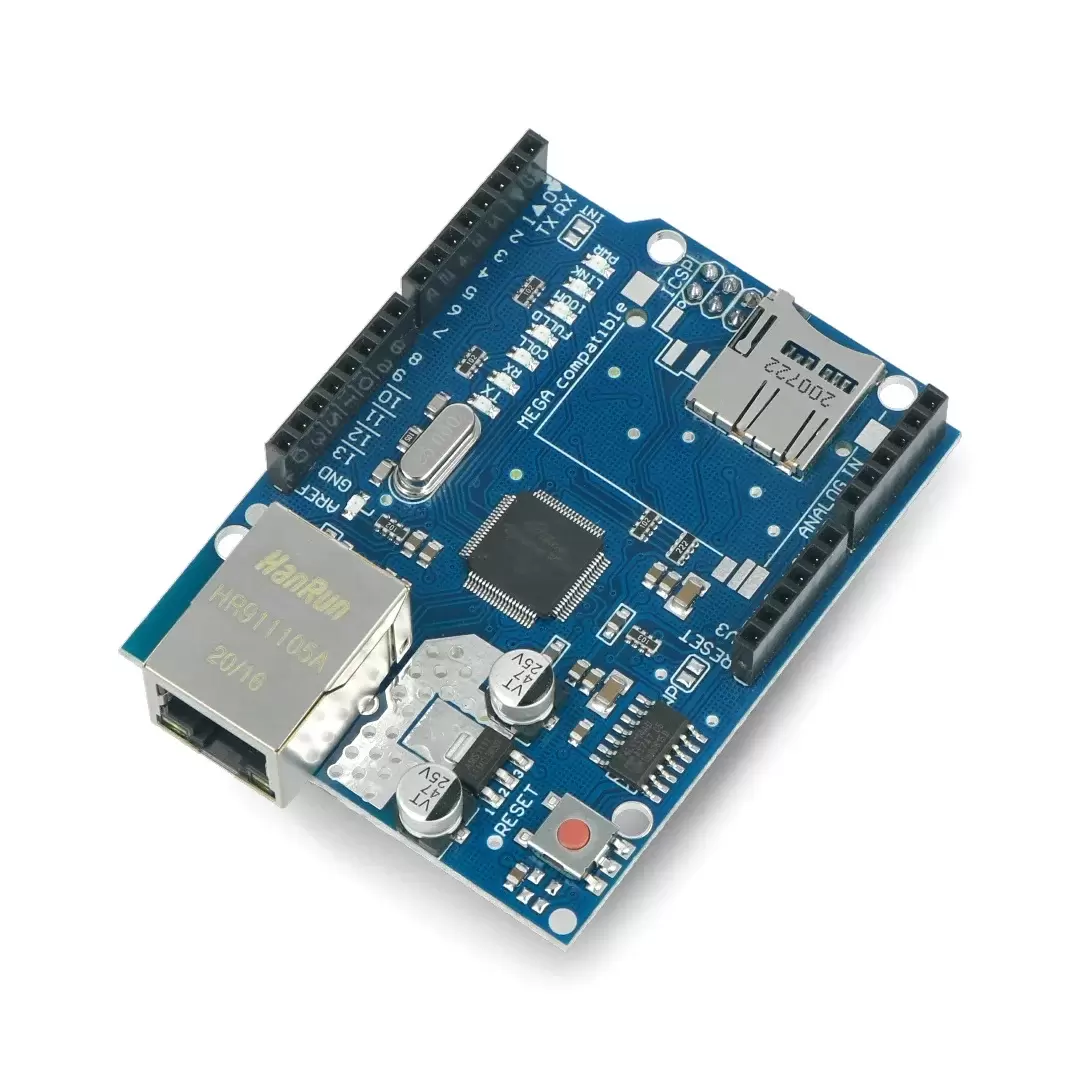

Arduino Shield – Ethernet Shield W5100 + SD Card

Arduino Shield – Ethernet Shield W5100 + SD Card is a high-quality electronic component designed for Arduino, prototyping, and educational electronics. Module based on W5100, allowing users of Arduino, a simple way to connect with Ethernet. Works with the Arduino Uno and Mega 2560. It has also a device for reading memory cards microSD.
Description
Module based on W5100, allowing users of Arduino, a simple way to connect with Ethernet. Works with the Arduino Uno and Mega 2560. It has also a device for reading memory cards microSD.

The device supports embedded in the environment of Arduino IDE, the Ethernet libraries and the SD Card.
Specification

Working voltage: 5 V
Ethernet slot RJ45
Equipped with the Wiznet W5100 chip
Mounted device for reading memory cards microSD
Communication via SPI interface
Supports the official library of Arduino Ethernet
Supports the official library of Arduino SD Card
The dimensions of the plate: 70 x 55 x 30 mm

Features :

Based on the W5100Based on the Wiznet W5100 allows an Arduino board to connect to the internet.
Stackable Design, can directly be supported by for Arduino official Ethernet Library.
Supports up to four simultaneous socket connections
Can be used to store files for serving over the network.
Compatible with the for Arduino Duemilanove (168 or 328), Uno as well as Mega (1280/2560).
Can be accessed using the Mini SD TF library.
The current shield has a Power over Ethernet (PoE) module designed to extract power from a conventional twisted pair Category 5 Ethernet cable.
IEEE802.3af compliant
Low output ripple and noise (100mVpp)
Overload and short-circuit protection
1500V isolation (input to output)

W5100 Datasheet It’s perfect for DIY makers, students, and anyone building custom electronic circuits or STEM kits.
