Press Button 2Pin (3x6x4.3mm)

Features:

• Push button switches are among the most recognizable and frequently used types of switches.
• They are ideal for momentary actions where a quick press activates or deactivates a circuit.
• These switches are commonly found in consumer electronics, automotive systems, and control panels.
• Designed to offer both durability and tactile feedback.
• Push button switches are perfect for applications where the user needs to confirm the activation of a function.

Specifications:

• Product type: Pushbutton
• Button Color: Black
• Number of poles: 1
• Contacts configuration: closing
• Switch position: OFF / ON
• Mechanical controller: button
• Number of contacts: 2
• Termination Style: Solder Pin
• Rated voltage(DC): 12 V
• Rated current: 50 mA
• Contact Resistance: ≤50mΩ
• Insulation Resistance: ≥100MΩ
• Dimensions (Length * Width * Height): 6 * 3.5 * 5 mm
• Min operational temperature: -20 °C
• Max operational temperature: 60 °C
• Weight: 2 g

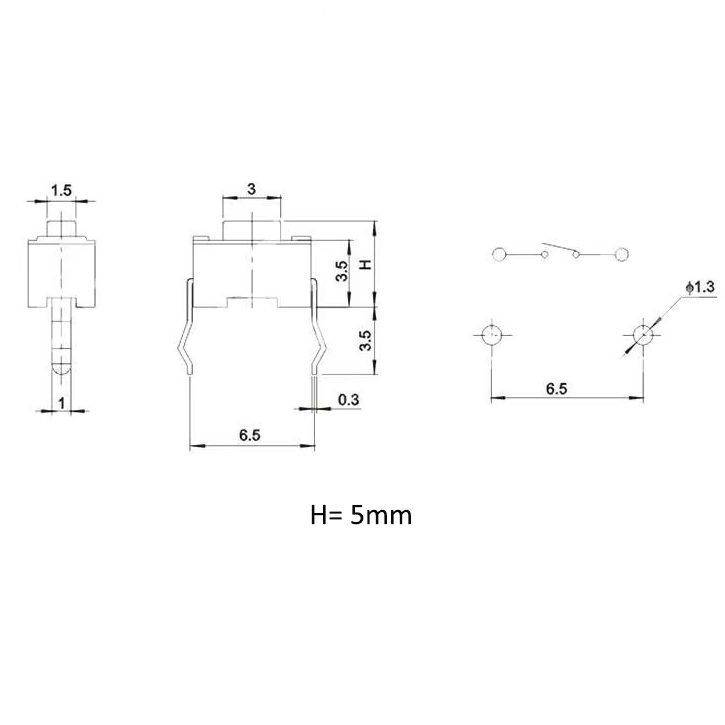

Drawing and Dimensions:
