Positive Voltage Regulator 5V-7805

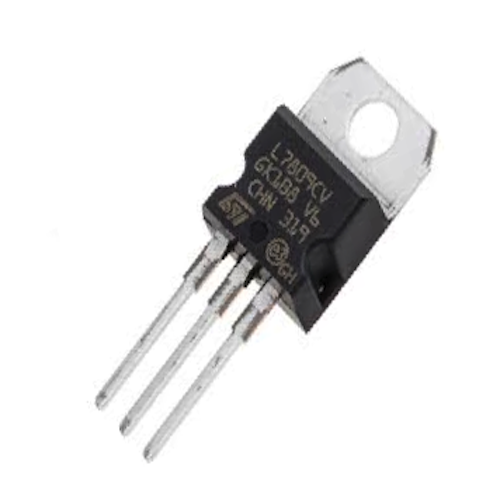

Positive Voltage Regulator 5V-7805 is a high-quality electronic component designed for Arduino, prototyping, and educational electronics. 7805 is a 5V Voltage Regulator that restricts the voltage output to 5V and draws 5V regulated power supply. The 7805 is the most common, as its regulated 5-volt supply provides a convenient power source for most TTL components.

7805 is a series of 78XX voltage regulators (as known as L78xx , LM78xx , MC78xx …), the xx is replaced with two digits, indicating the output voltage (for example, the 7805 has a 5-volt output, while the 7812 produces 12 volts).

Applications

Circuits requiring steady 5v supply
Protection for devices having specific voltage sensitivity
DIY projects requiring specific voltage from an existing higher/ varying voltage supply

Features

Fixed 5V voltage regulators
Thermal overload protection
Short circuit protection
Output transition SOA protection
Heatsink is required *

Specifications

Output Type: Fixed
Output Voltage: +5V dC
Current Output: up to 1A
Input Voltage: 7.3 – 35VDC
Line Regulation: 100 mV
Load Regulation: 100 mV
Quiescent (standby) current: 8mA
Dropout Voltage (Max): 2 V @ 1A
Category: Linear Voltage Regulators – Standard
Polarity: Positive
Operating Temperature: 0 to +125°C
Mounting Style: Through Hole
Pin Spacing Pitch: 2.54mm
Hole Diameter: 3.8mm
Dimensions: 10.4 x 4.6 x 9.15mm

It’s perfect for DIY makers, students, and anyone building custom electronic circuits or STEM kits.
