Smart Digital Voltmeter / Multimeter UNI-T ( UT121B )

Smart Digital Voltmeter / Multimeter UNI-T ( UT121B ) is a high-quality electronic component designed for Arduino, prototyping, and educational electronics. UT121 series feature large-screen & ultra-thin multimeters and auto range and they can display two measurement results at the same time, which is convenient for home and non-professional users. They are convenient and fast electronic tools.

Features

True RMS
AC 750V/DC 1000V voltage measurement
60MΩ large resistance measurement
60mF large capacitance measurement
Full-scale input protection
NCV/LIVE measurement
Large-size LCD screen
19mm ultra-thin body
6000counts
Intelligent identification gear

• Specifications
  Range
  UT121B
• AC voltage (V)
  6.000V/60.00V/600.0V/750.0V
  ±(1.5%+3)
• AC voltage frequency (Hz)
  10Hz-1kHz
  ±(0.5%+2)
• DC voltage (V)
  6.000V/60.00V/600.0V/1000.0V
  ±(1.2%+3)
• Resistance (Ω)
  600.0Ω/6.000KΩ/60.00KΩ/600.0KΩ/60.00MΩ
  ±(2%+5)
• Capacitance (F)
  60.00nF/600.0nF～600.0μF/6000uF～60.0mF
  ±(10%+5)
• Frequency (Hz)
  10.00Hz-10.00MHz
  ±(0.1%+3)
• Temperature(℃/℉)
  –40℃～1000℃/–40°F～1832°F
  ±3℃/±6℉
• Features
• Display count6099
• Dual display√
• Auto range√
• NCV detection√
• LIVE detection√
• Diode test√
• Continuity buzzer√
• LCD high voltage alert√
• Flashlight√
• Low battery indication√
• Auto power off√
• Data hold  √
• Category ratings
• CATⅢ 600V
• General Characteristics
• Standard accessories

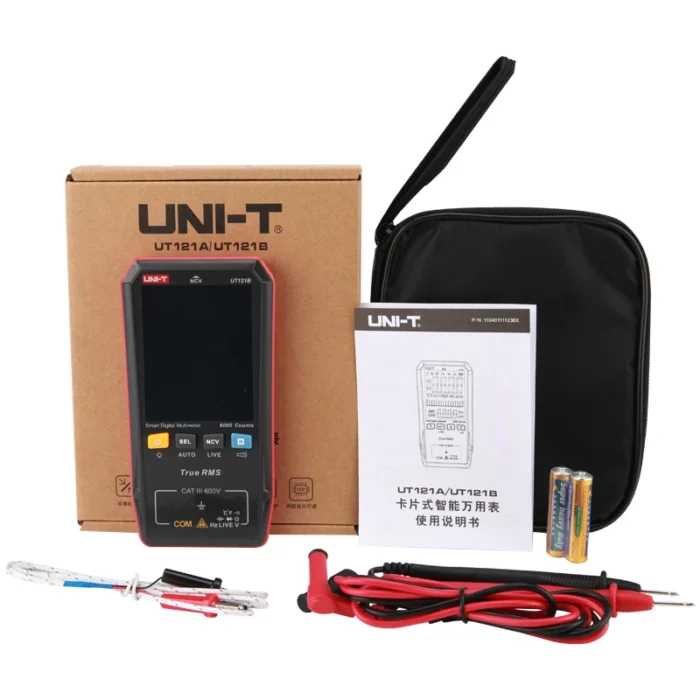

• UT121B Batteries, test leads, temperature probe, English manual
• Power
• 2*1.5V AAA
• Display
• UT121A/UT122B: 52*66mm; UT122: 65*55mm
• Product size
• UT121A/UT122B: 143*74*17mm; UT122: 144*71*15.5mm

It’s perfect for DIY makers, students, and anyone building custom electronic circuits or STEM kits.
